In May we flipped the 22′ center console and I began making her stronger with the interior glass sheathing and 3/4″ ocoume bulkheads on 16″ centers. I got the deck fit and the lookouts are cut and fit. Here are some pictures of the process.
Harrison Boatworks 22′ Center Console
SAMSUNG

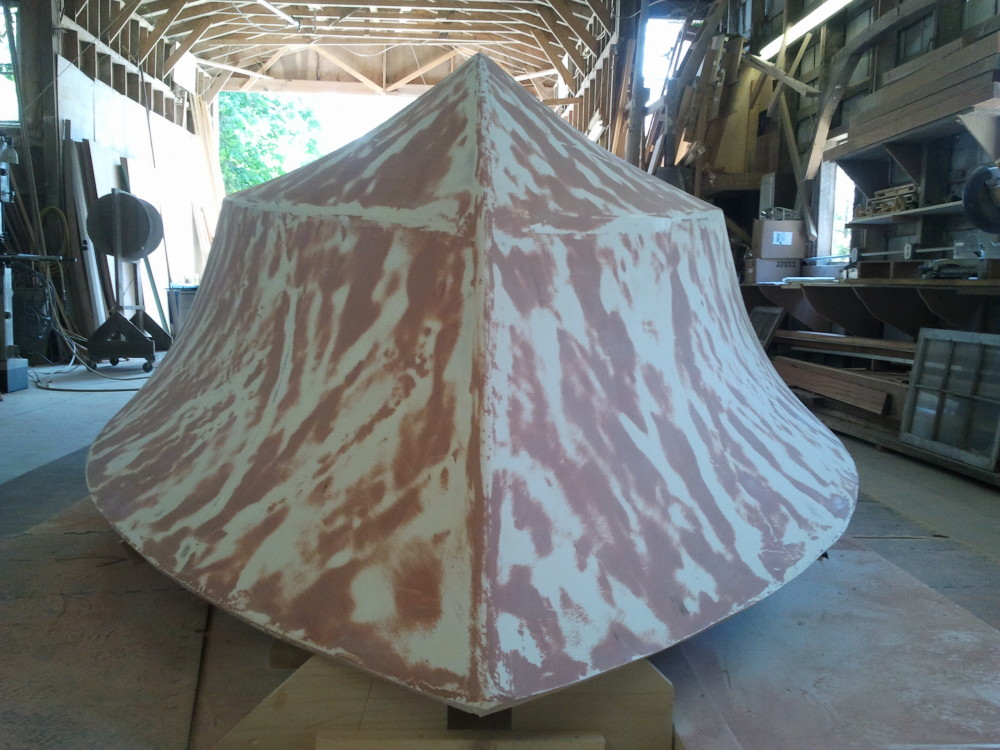

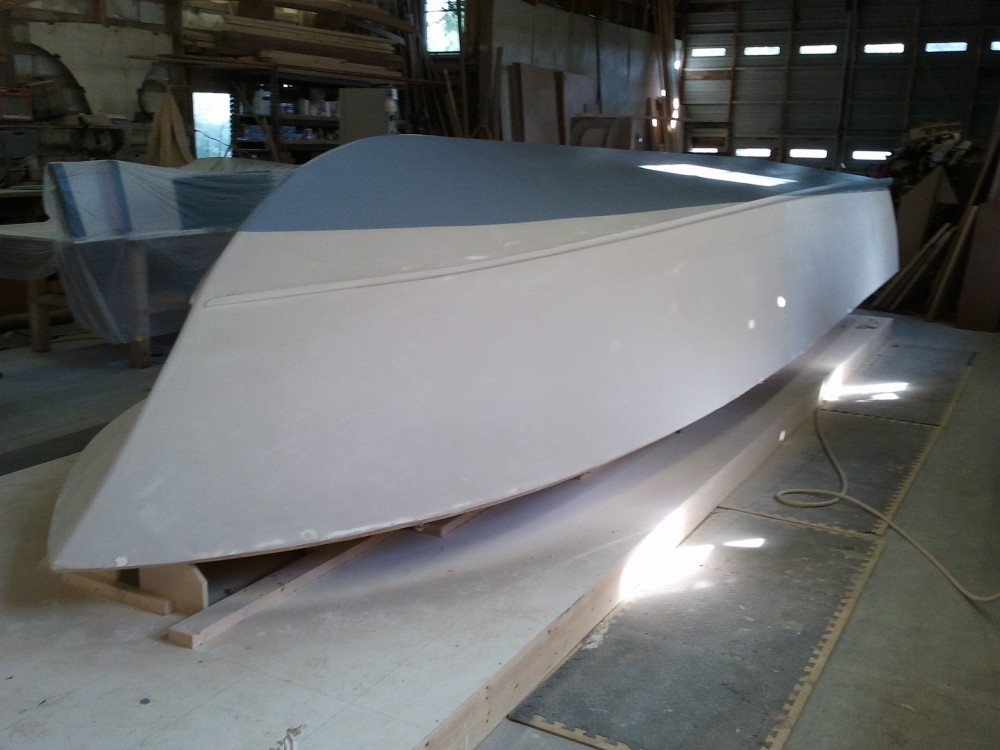

22″ center console blocking and fairing
Blocking and fairing the hull.
22′ Center Console boat and console
Console will contain fuel tank.

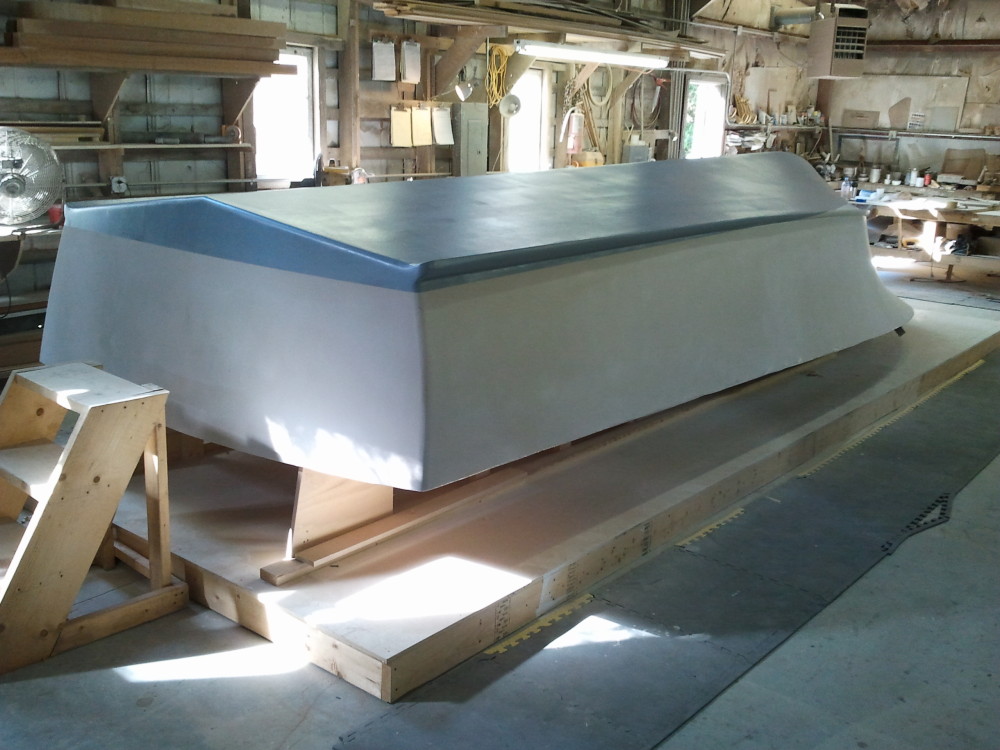

22′ center console – barrier coat
Bottom barrier coat with Interlux Microplates.
22″ center console – barrier coat 2
2 coats of barrier coat now and then 2 coats right before the bottom paint.

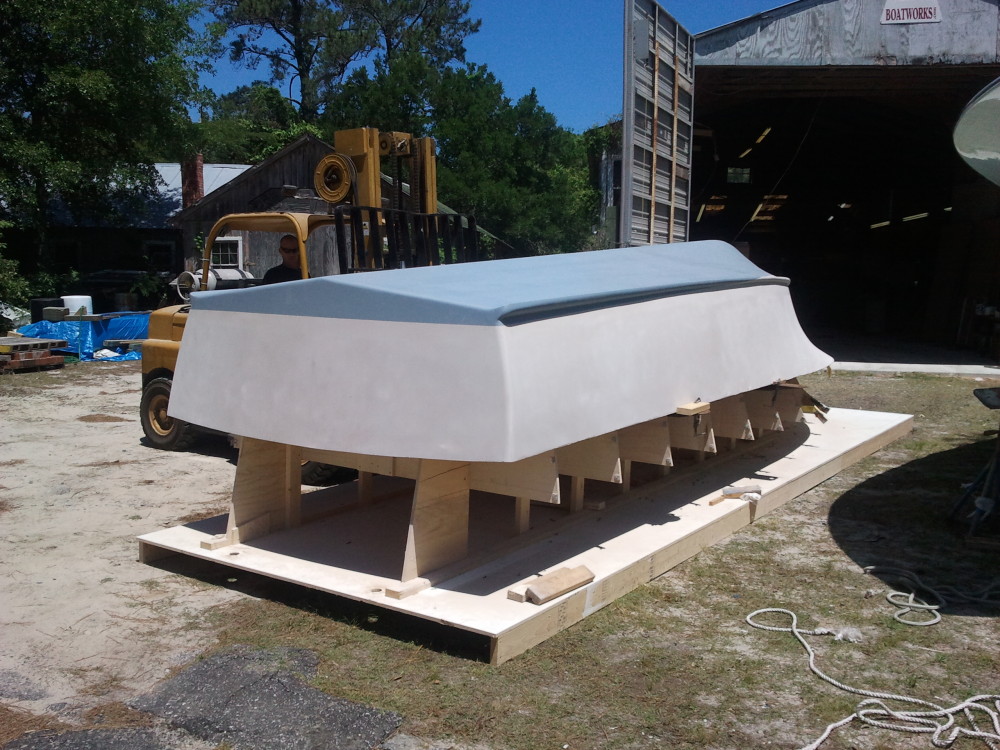

22′ center console in yard

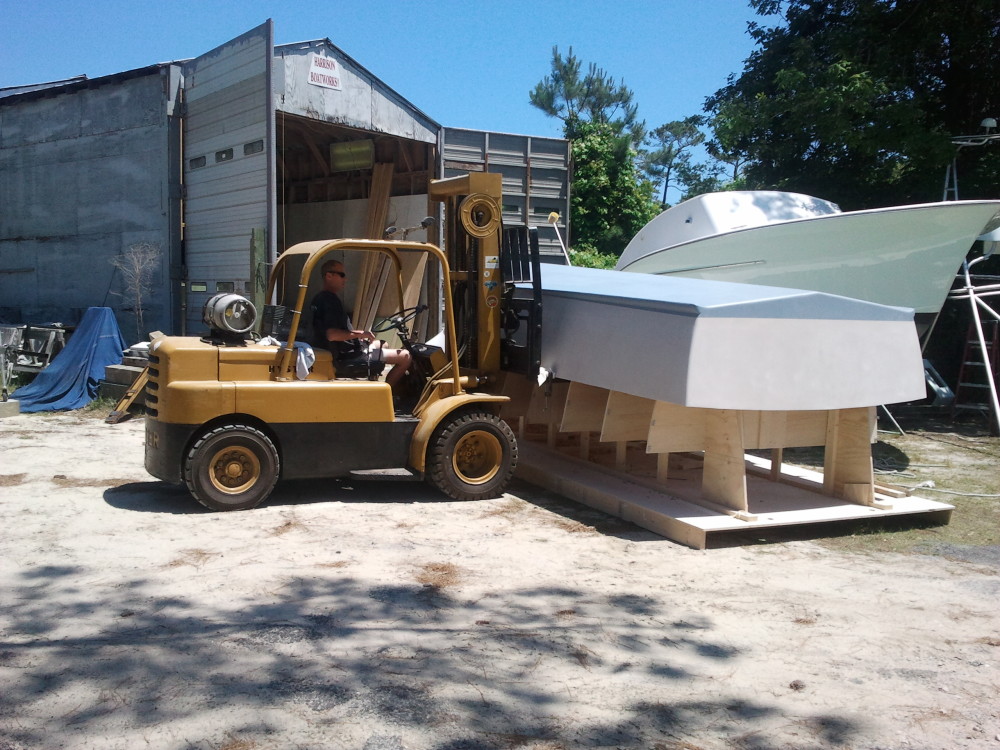

Pulling the loft out of the building and lifting the hull the jig.

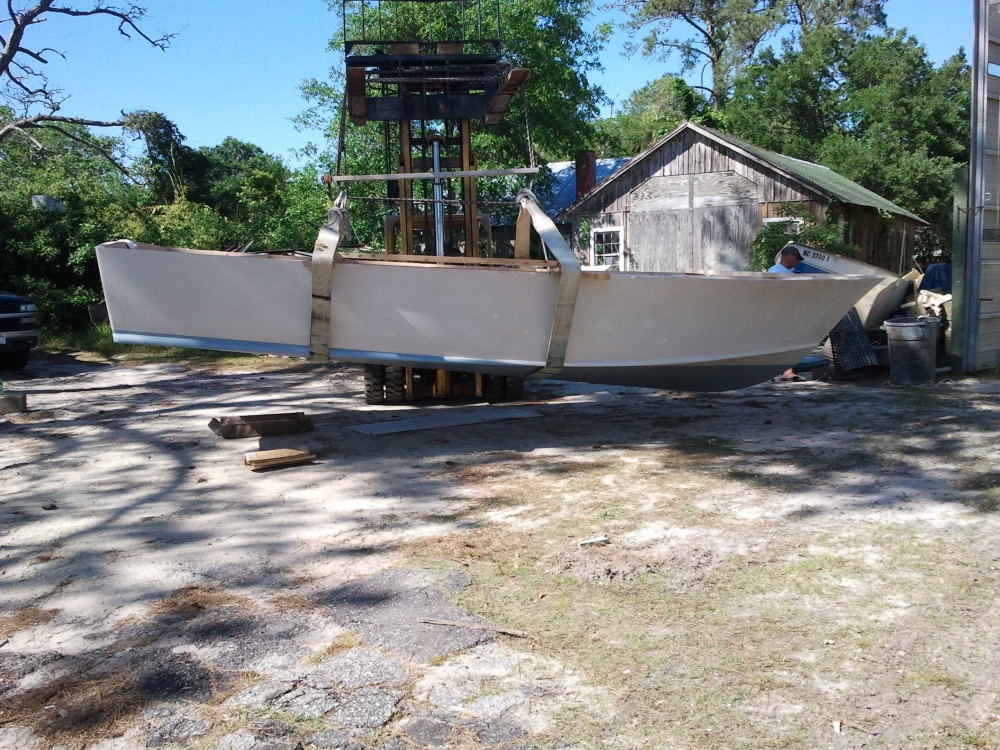

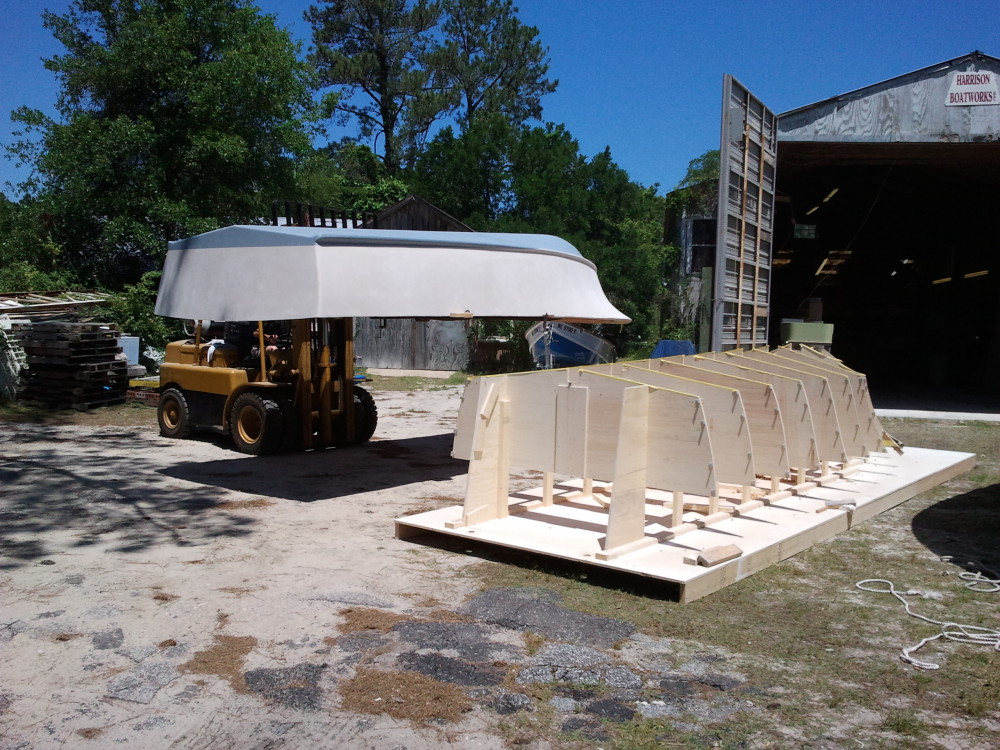

22′ center console lifting off jig
The forklift makes the job much easier.
22′ center console lift off
22′ center console flipped

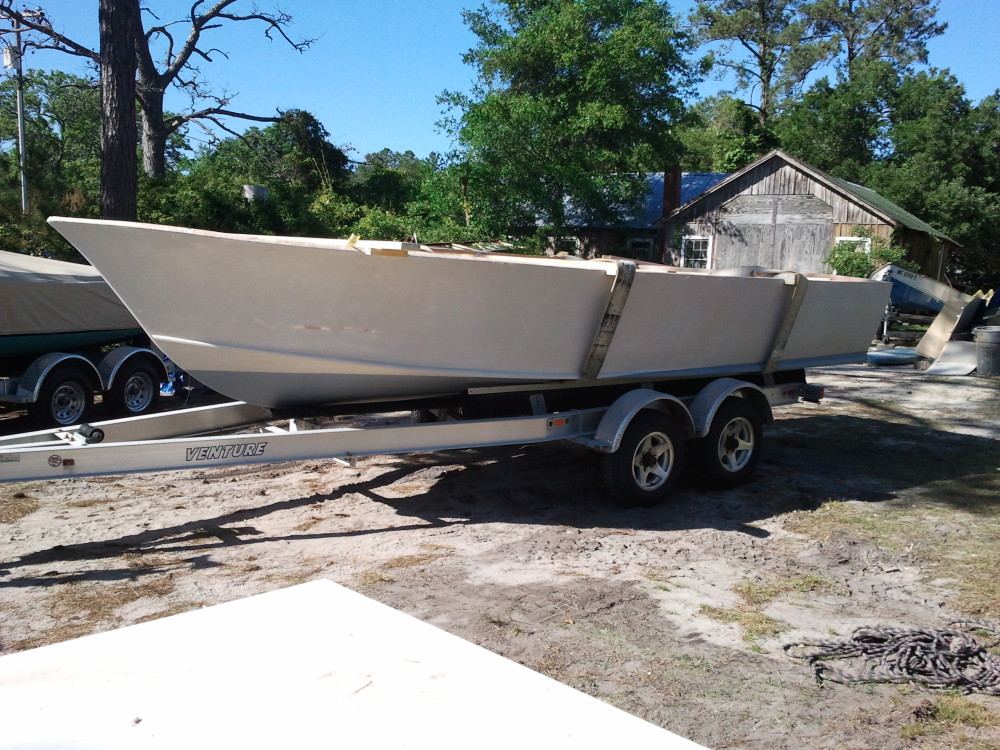

22′ center console on trailer for first time
First time right side up.

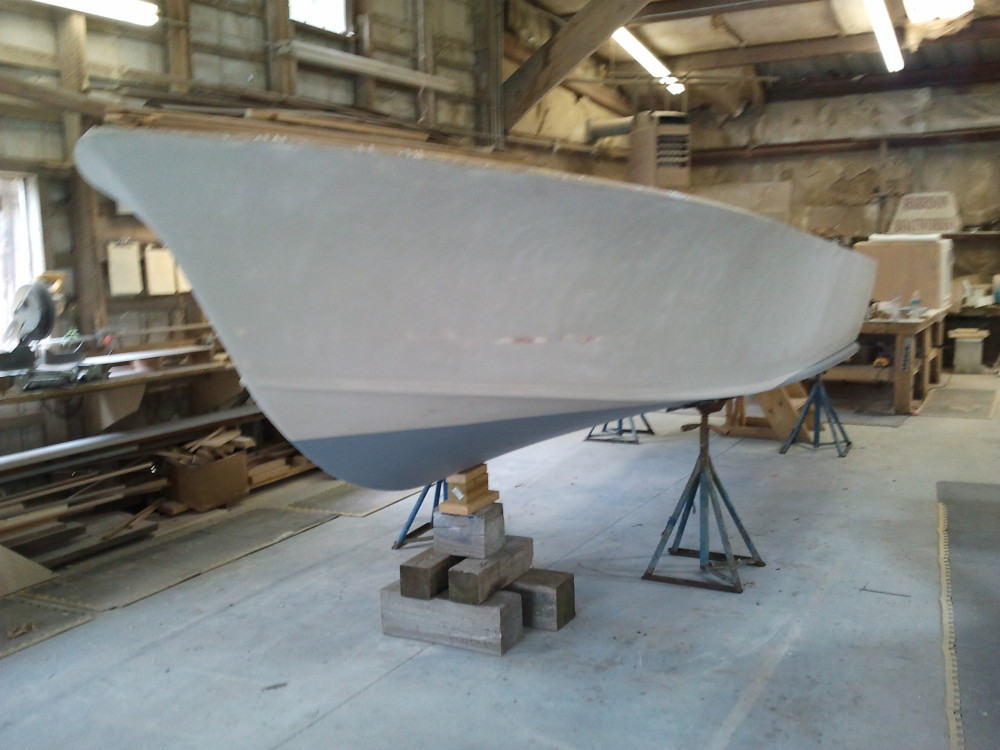

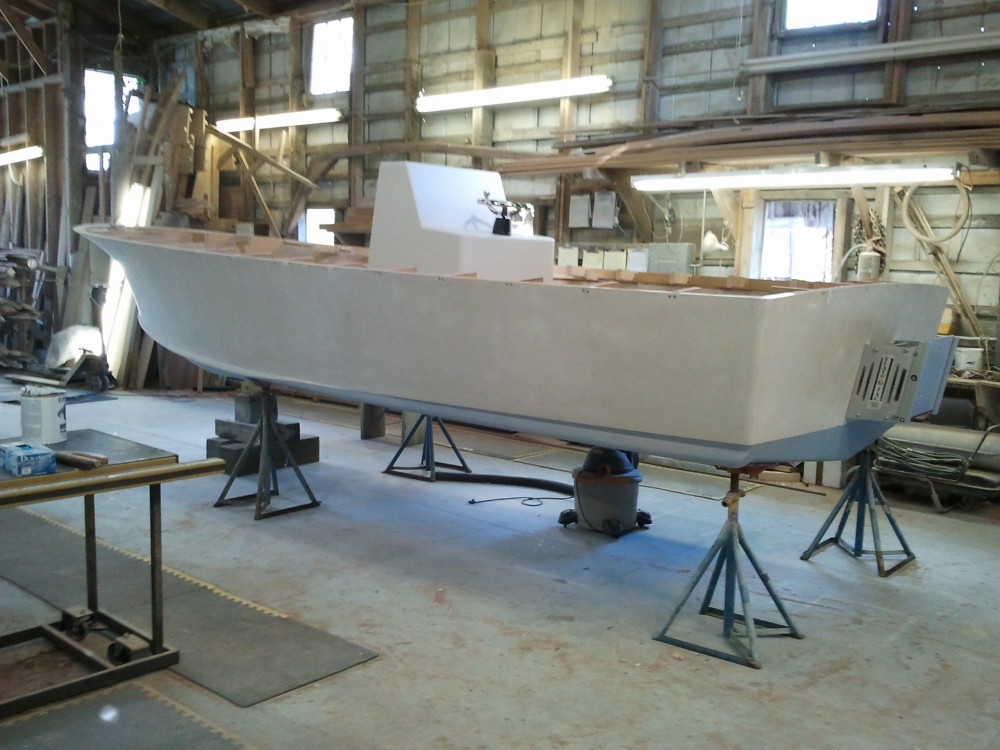

22′ on stands

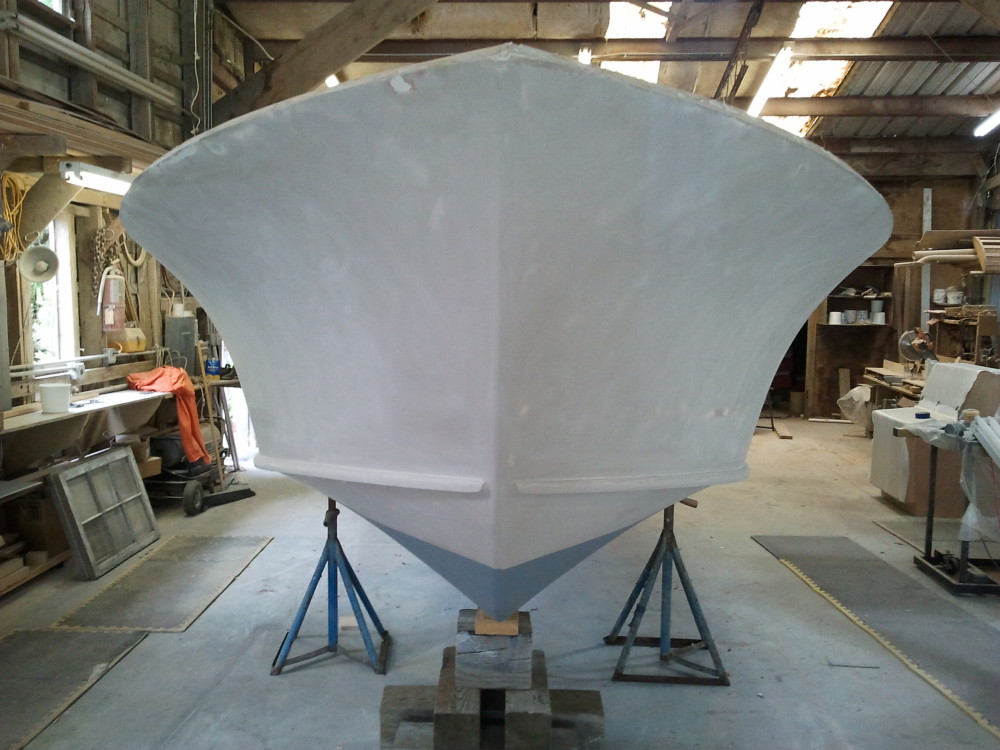

22′ center console on stands

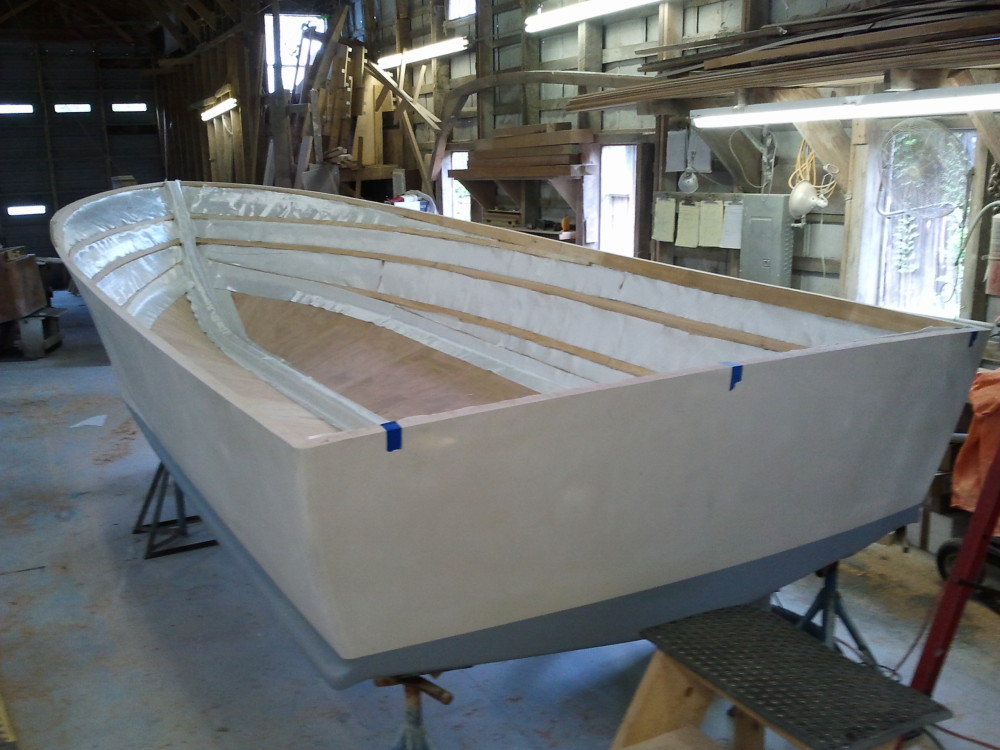

22′ center console interior glassing
Glassing the interior with 1208 biaxle fiberglass & West System epoxy, just like the outside of the hull

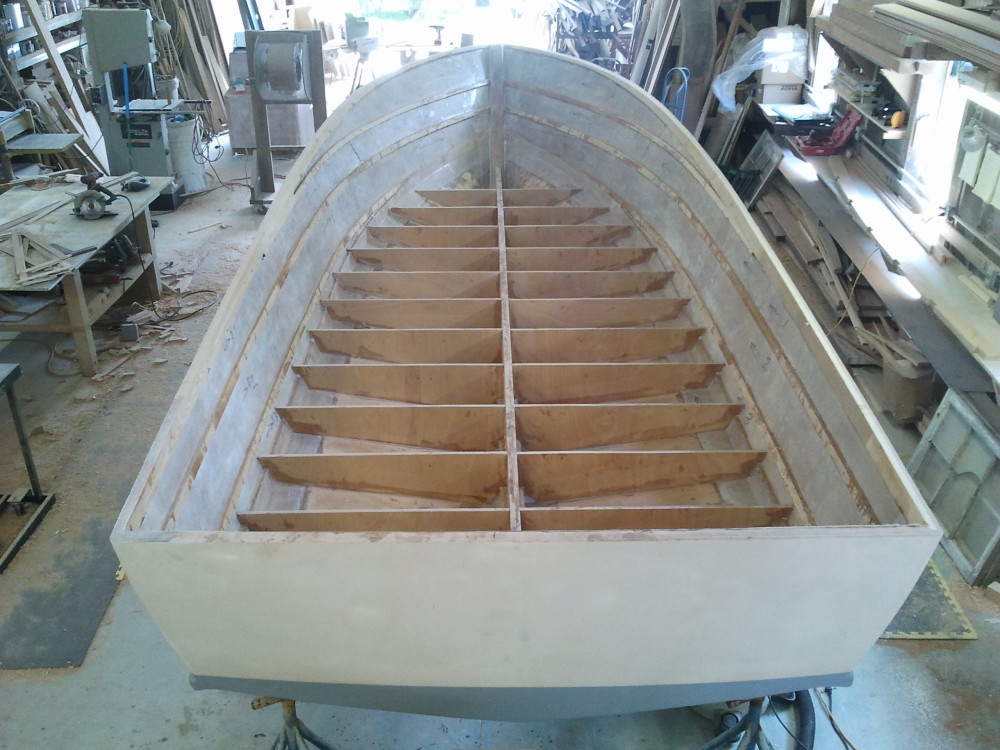

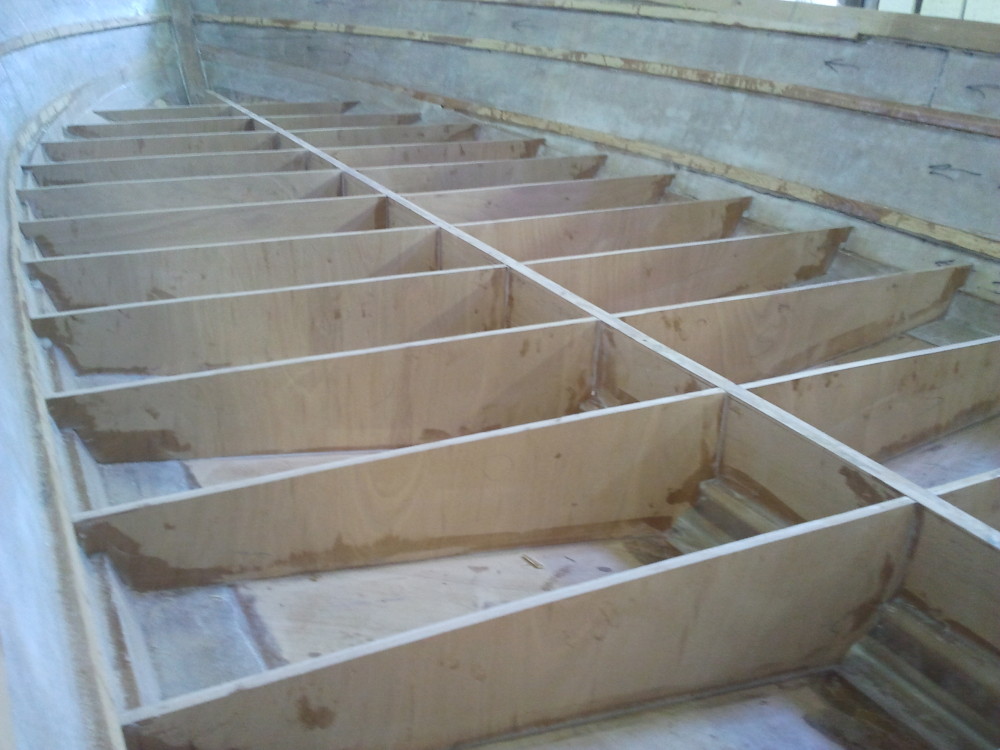

22′ center console bulkheads
3/4″ ocoume bulkheads on 16″ centers creating an extremely strong grid system
22′ center console bulkheads 2
3/4″ bulkheads leading into 1 1/2″ thick backbone
22′ center console

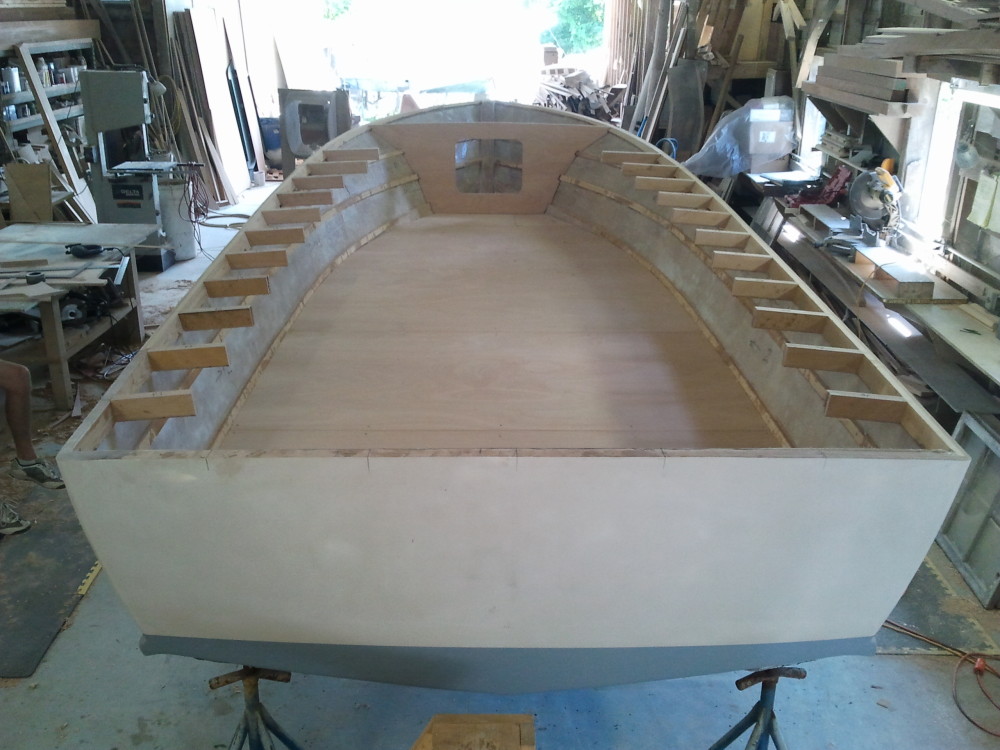

Deck lookouts and forward bulkhead dry fitted
22′ center console – ladder view

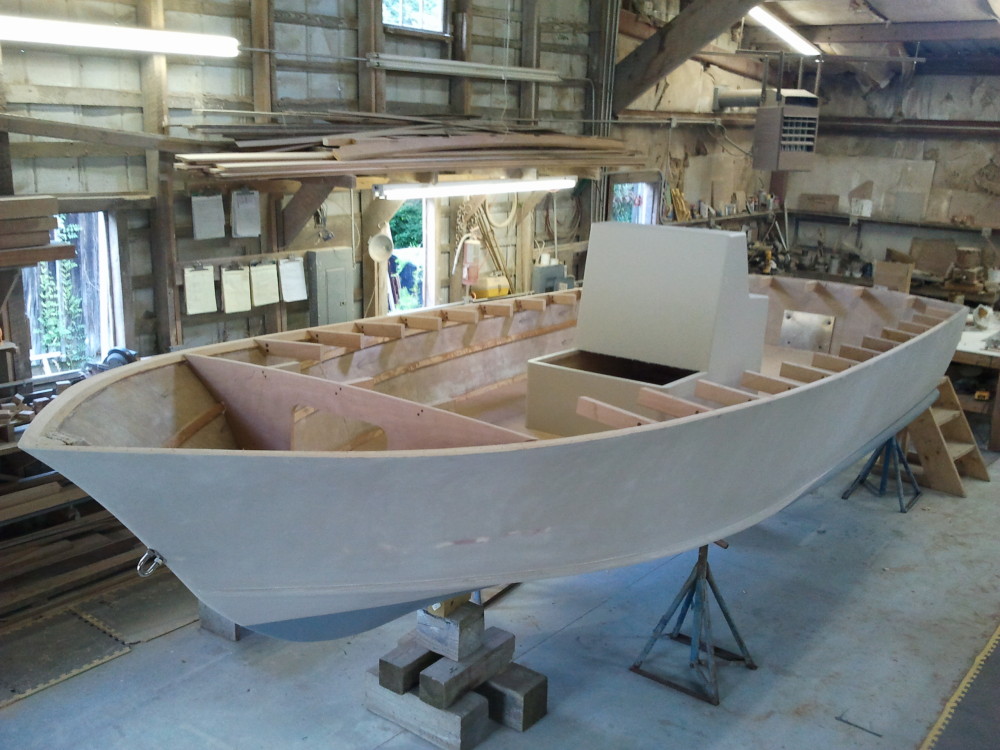

22′ center console – quarter shot

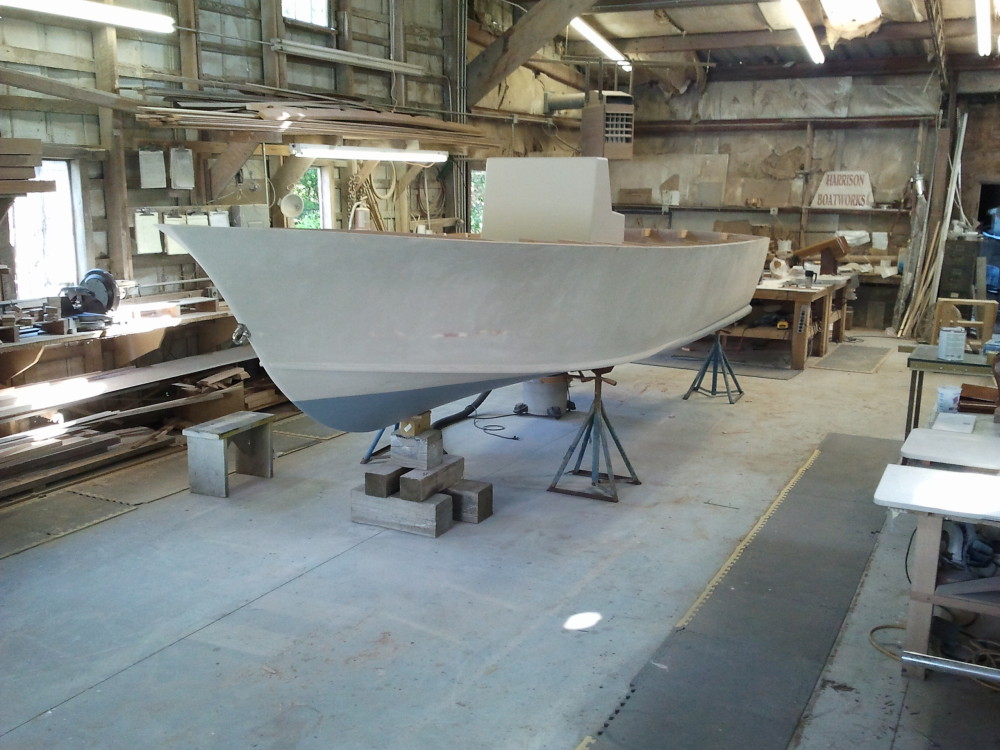

22′ center console – side view

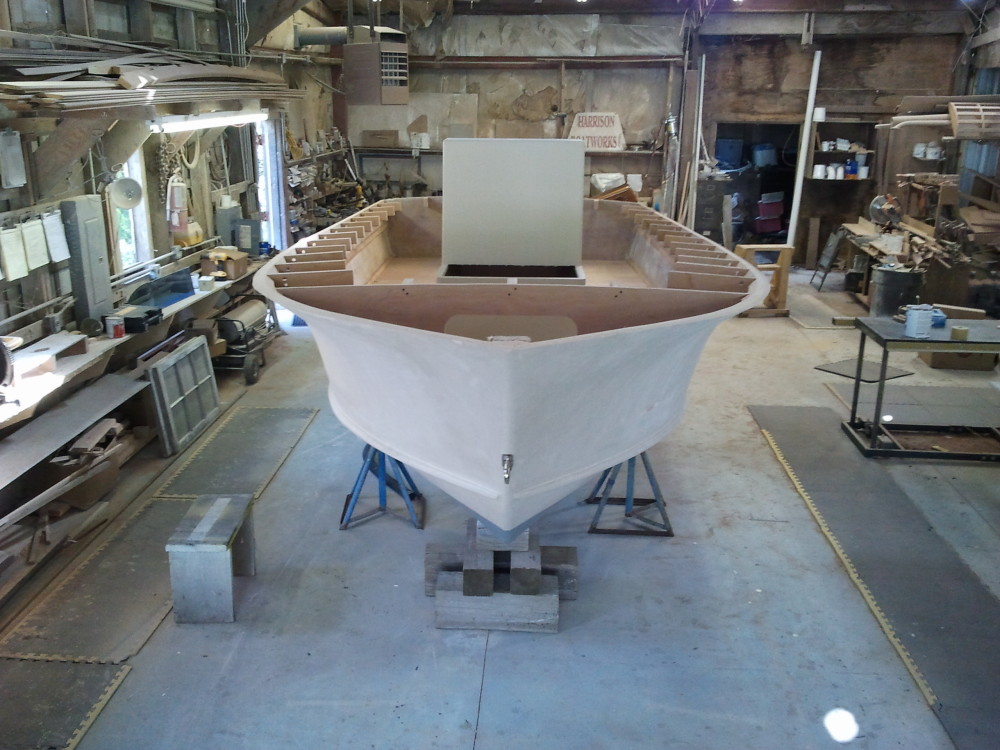

22′ center console – bow shot
22′ center console – lookouts
22′ center console 4

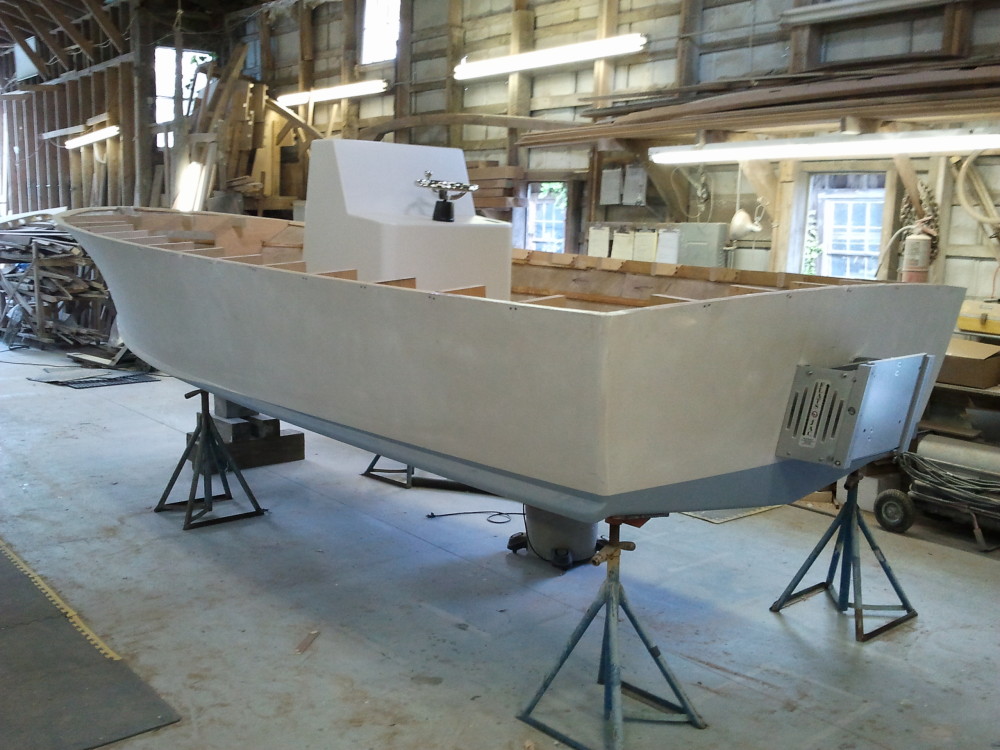

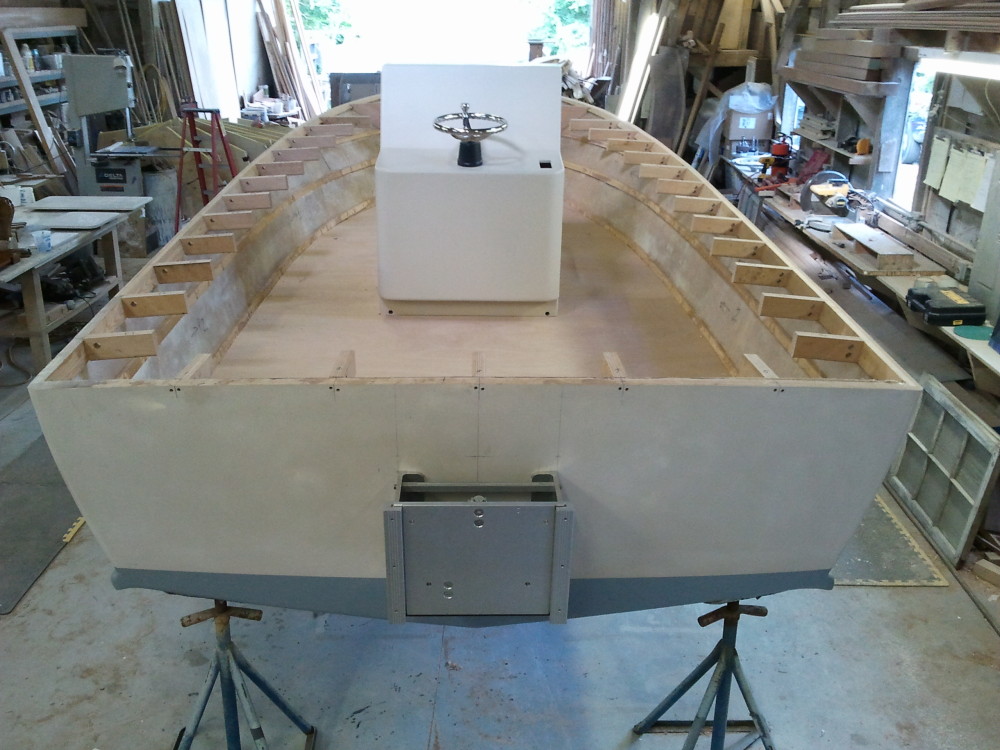

22′ center console with jackplate
Jackplate from Bob’s Machine Shop.
